Vestil WL-100-5-610 Premium Truck Scissor Dock Lift, 5000 lb. Capacity,6" x 10", Brown/Yellow

Sale price Price $9,989.00 Regular price Unit price per

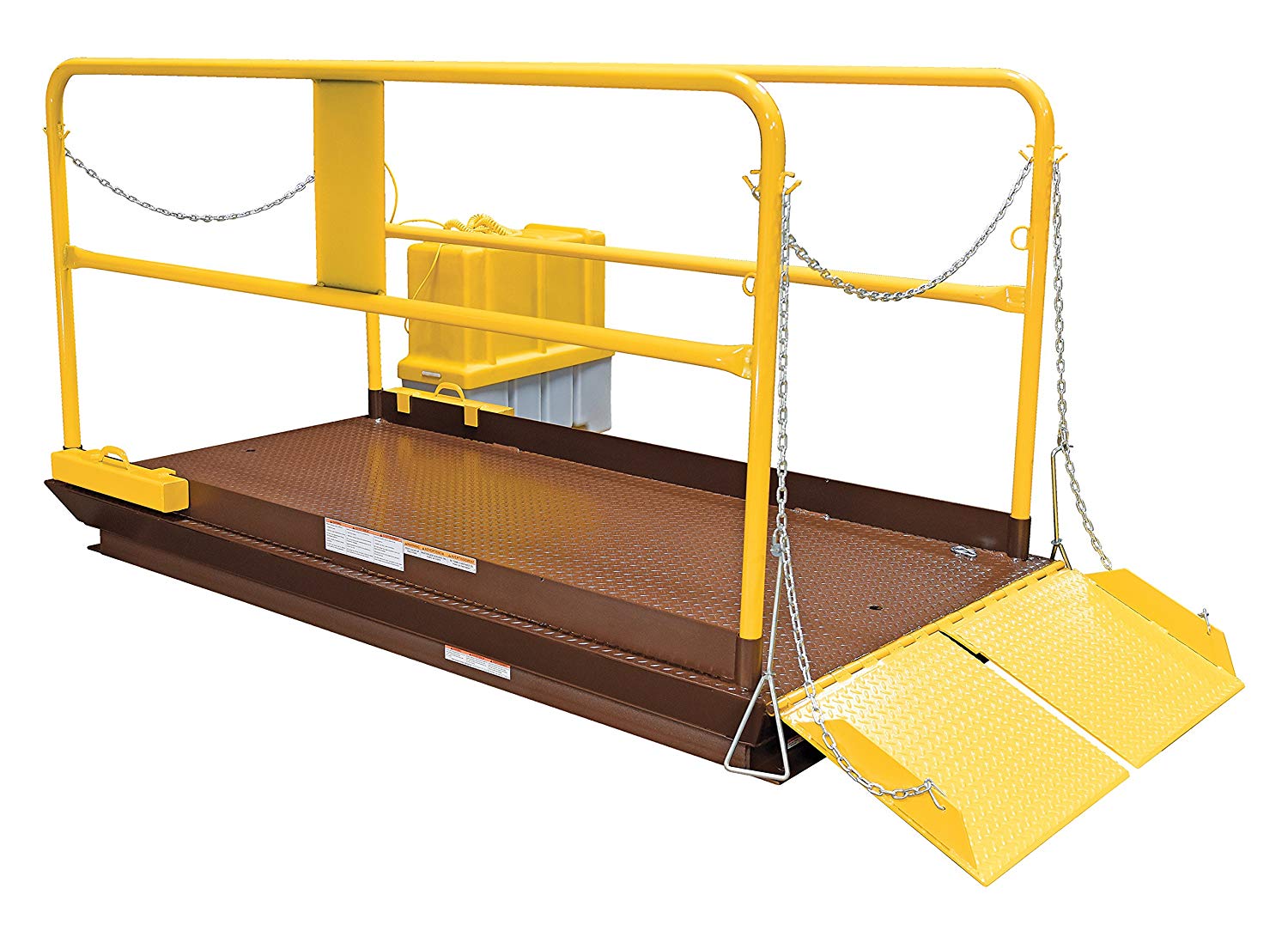

Save time and reduce man-hours where there are no docks with a Truck Scissor Dock Lift. The pit or surface mount has an optional approach ramp. Engineered and designed for maximum safety and efficiency. The checkered plate deck is made of heavy gauge steel of use. Hydraulic cylinders feature emergency velocity fuse if line breaks. It comes complete with upper travel limit switch and overload relief valve. The push-button control is on a long coil cord.

Pre-wired control box includes magnetic starter and overload fuse. High visibility safety yellow removable handrails with fixed toe boards are standard. Includes beveled toe-guards and electric toe-guards around perimeter of platform. The external motor can be located up to eight (8) feet away from lift.

Unique design services semi-trailers when loading dock is unavailable
Tread plate surface provides a safe non-slip grip
Safety velocity fuses protect the hydraulic cylinders
Upper travel limit switch cuts power to unit when max raised height is reached

Specifications:

Part Number	WL-100-5-610
Load Capacity	5000 pounds
UPC	691215047074
Brand Name	Vestil
Color	Brown/yellow
EAN	0691215047074
Height	53.0 inches
Item Weight	3828.0 pounds

Length	138.0 inches
Material	Steel
Maximum Lifting Height	68.0 inches
Model Number	WL-100-5-610
Number of Items	1
Size	L
UNSPSC Code	20102306
Width	72.0 inches
