Titan P22
Sale price
Price
$0.00
Regular price
Unit price
per
Features
- Height-adjustable swivel seat features fold-down backrest
- Includes interchangeable color panels in red and blue
- Seat back reclines and features adjustable headrest

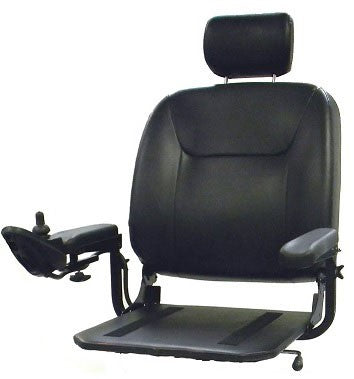

- Adjustable-length controller mount (Figure B)
- Armrests are padded, adjustable and removable

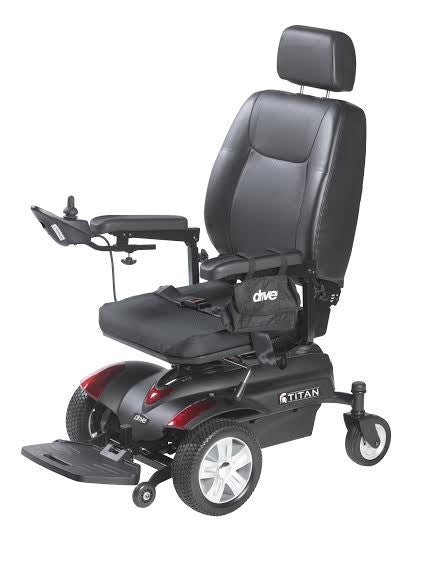

- Available with 18” and 20” wide Pan Seats (Figure A)
- Optional swing-away controller arm (Item #AA4100) sold separately
- Solid, flip-up footplate with adjustable height,
- depth and angle
- Positioning belt included
- Optional elevating leg rests (requires Item #AE2500 & Item #LK3JELR) sold separately
- Programmable controller

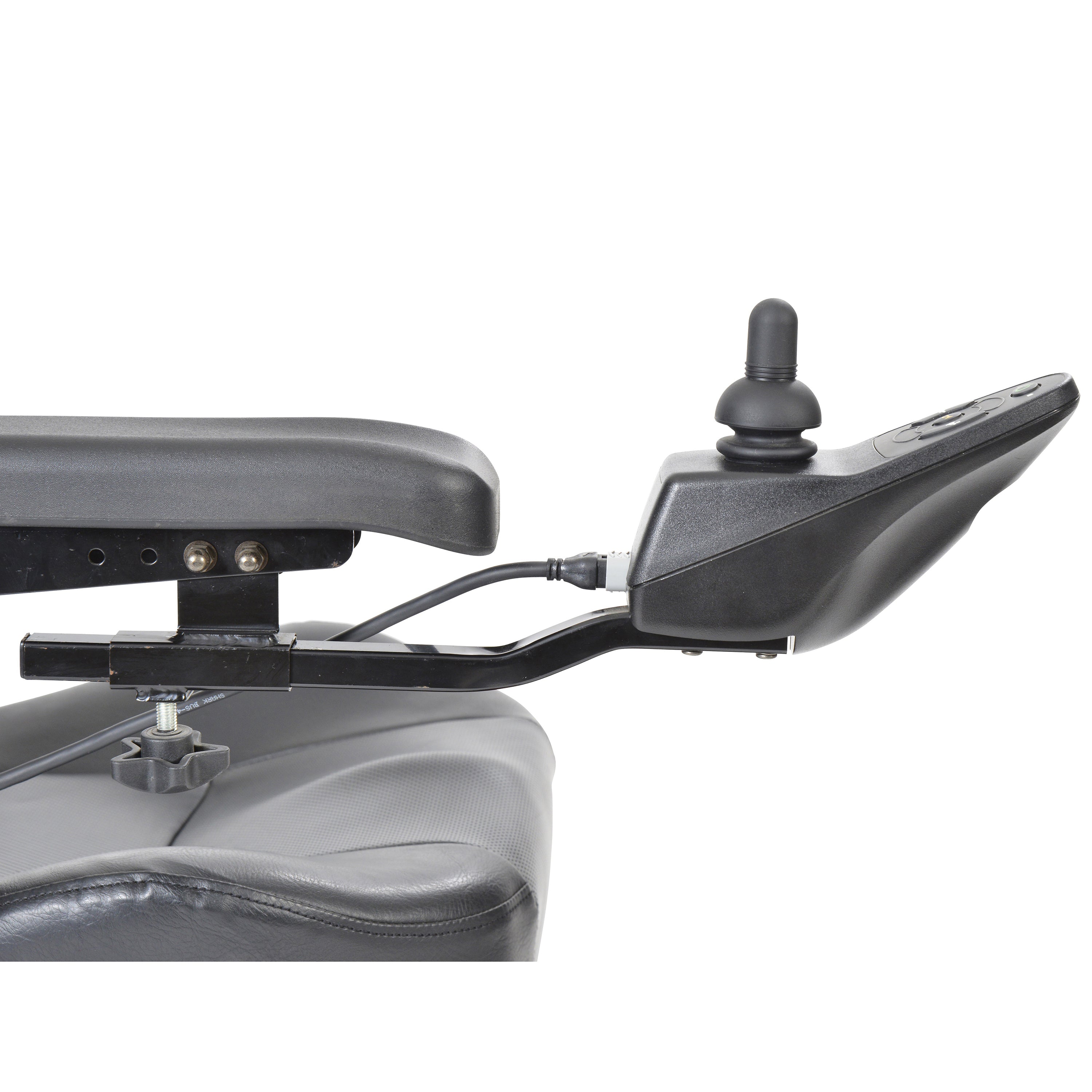

- Flat-free, non-marking tires (Figure C)

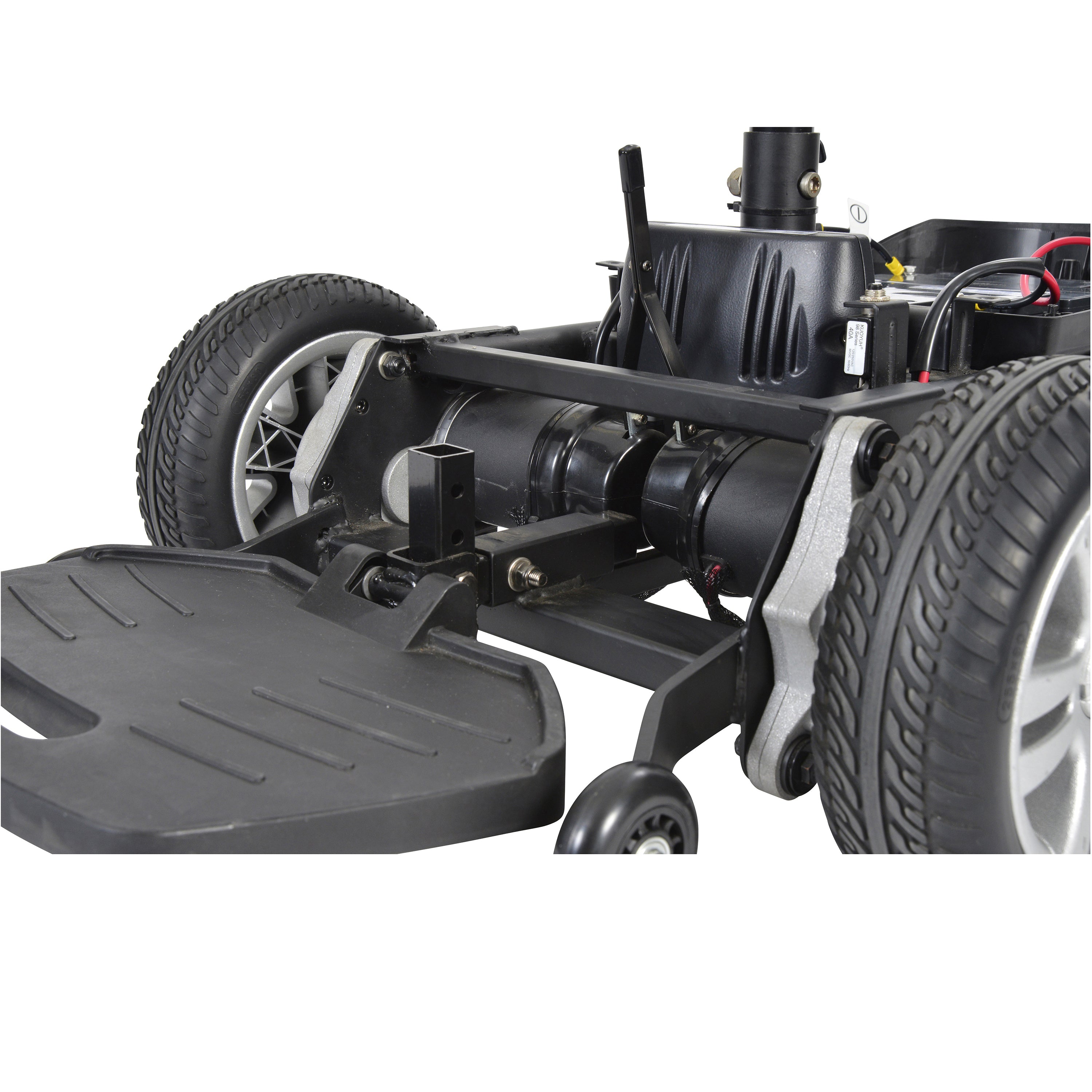

- Easy free wheel operation (Figure D)
- Anti-tip wheels
Specifications:
| HCPCS | K0822 |
|---|---|
| Weight Capacity | 300 lbs. |
| Top Speed | 4 mph |
| Maximum Range | 15 miles |
| Turning Radius | 25" |
| Climbing Angle | 6° |
| Ground Clearance | 2.5" |
| Dimensions | 40" (L) x 24" (W) |
| Floor -to-Seat Height | 20.5" - 23" |
| Controller | Dynamic Shark 40A |
| Motors (2) | 24V x 200W x 3900 rpm |
| Batteries (pair) | 12V x 35AH (U1) |
| Charger | 3A Offboard |
| Brakes | Electromagnetic |
| Caster Wheels | 6" x 2" Solid |
| Drive Wheels | 10" x 3" Flat-free |
| Base Weight | 68 lbs. |
| Battery Weight (pair) | 44 lbs. |
| Seat Weight | 43 lbs. |
| Total Weight | 158 lbs. |
| Warranty on Frame | Limited Lifetime |
| Warranty on Electronic Controller | 24 Months |
| Warranty on Drive Train Components | 24 Months |
| Warranty on Batteries | 6 months |
