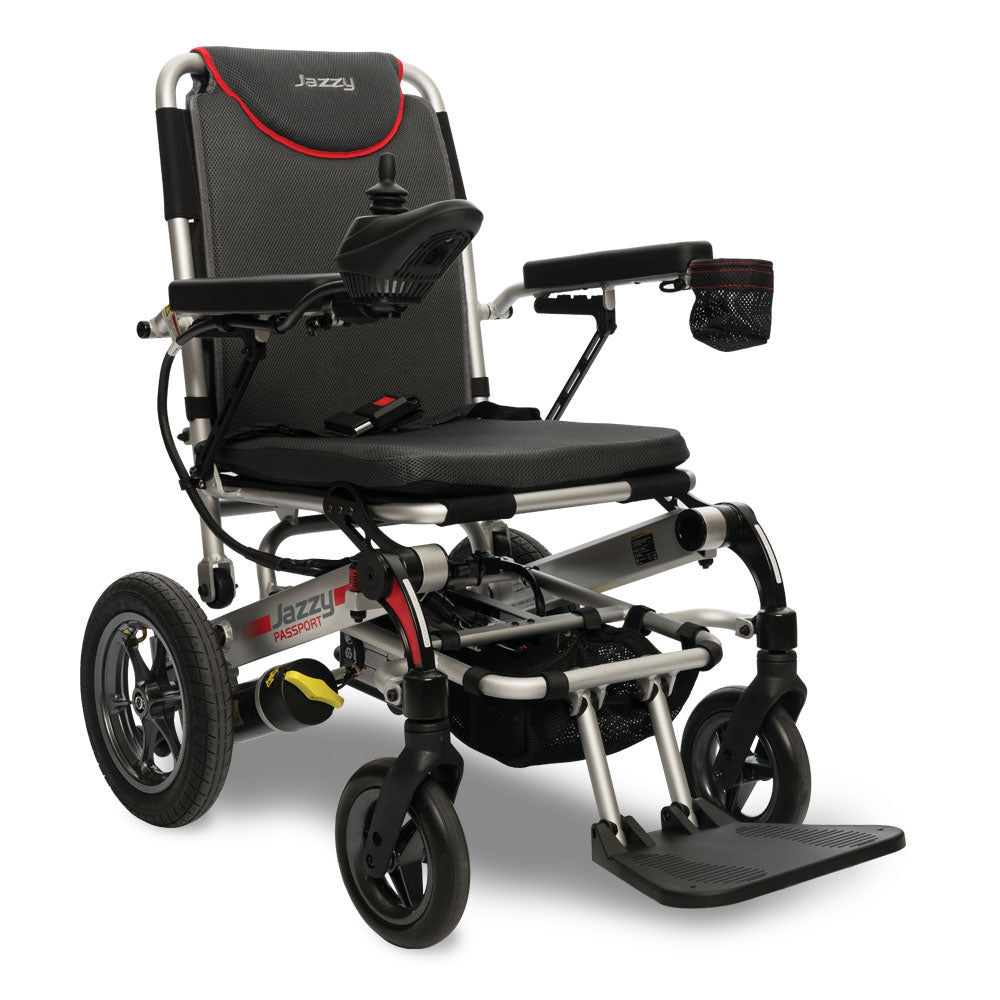

Open image in slideshow, Jazzy Passport

Jazzy Passport

$2,899.00

Simply fold and travel with the Jazzy® Passport. This compact power chair folds in just a few steps and offers convenient storage and ample foot room. Travel in comfort with the Jazzy Passport.

Features:

  • A compact and lightweight design makes traveling a breeze
  • Back seat pocket for extra storage while on-the-go
  • Folds in just a few simple steps for effortless transport
  • Includes convenient, under seat mesh storage bag, mesh cup holder and 40” lap belt
  • Large foot platform to accommodate the user’s comfort
  • Specialty foam seat design for extreme comfort

Specification:

Model
Jazzy Passport
Weight Capacity 250 lbs.
Turning Radius 24.25"
Maximum Speed1 Up to 3.6 mph
Ground Clearance3 3” at motor
Overall Length3 40”
Overall Width3 23.5”
Seat-to-Ground Height 19”
Seat-to-Foot Platform Height 14.5” (no adjustment)
Casters 8” solid
Drive Tires 12” Pneumatic drive
Suspension Limited
Range Per Charge1,2 Up to 9.6 miles
Total Weight Without Batteries3,5 53 lbs.
Heaviest Piece When Disassembled3 N/A
Standard Seating Material: Gray, Foam
Dimensions: 17.5” x 16.5”
Drivetrain 2X 180W brushed motors
Standard Electronics 50 amp PG VSI
Dual Braking System Regenerative and electromechanical
Battery Requirements3 24 V 18Ah Lithium ion
Battery Weight4 7 lbs.
Battery Charger 2-amp, off-board
Weight of Heaviest Piece 54 lbs. (unit does not disassemble)



Downloads
