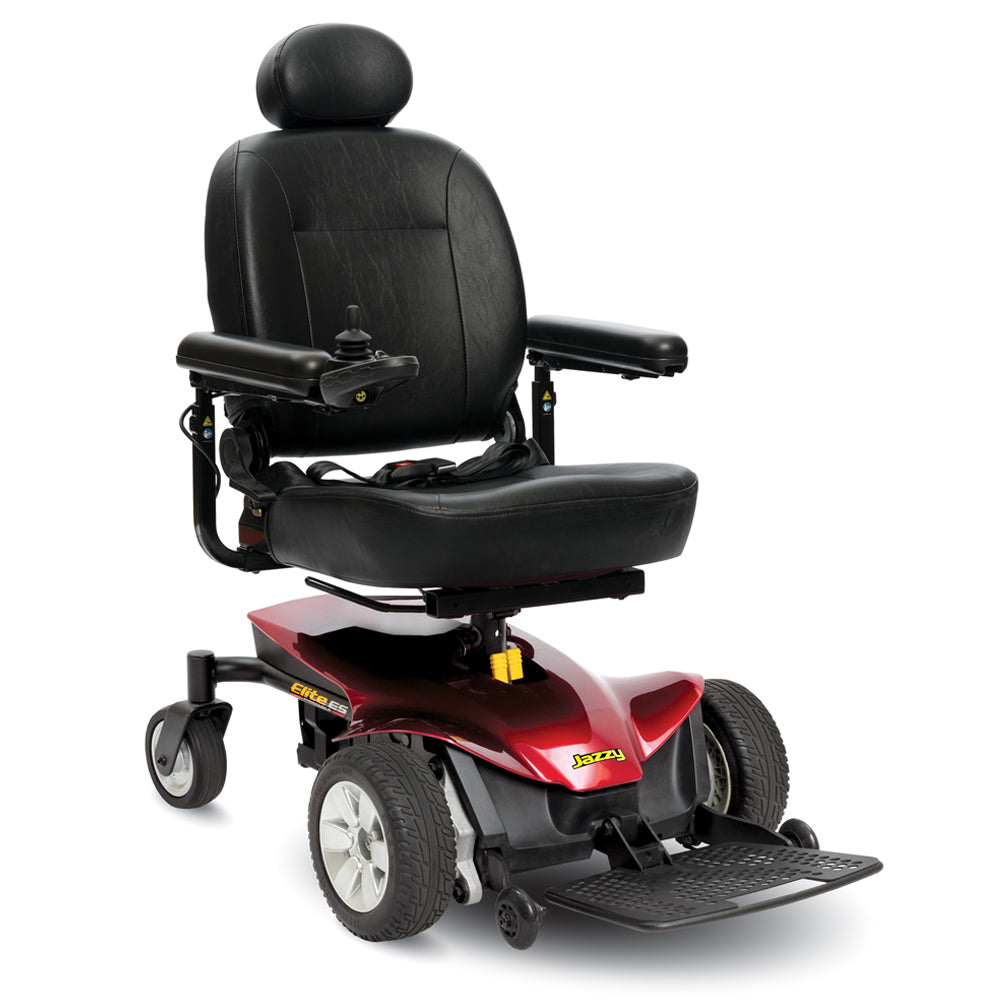

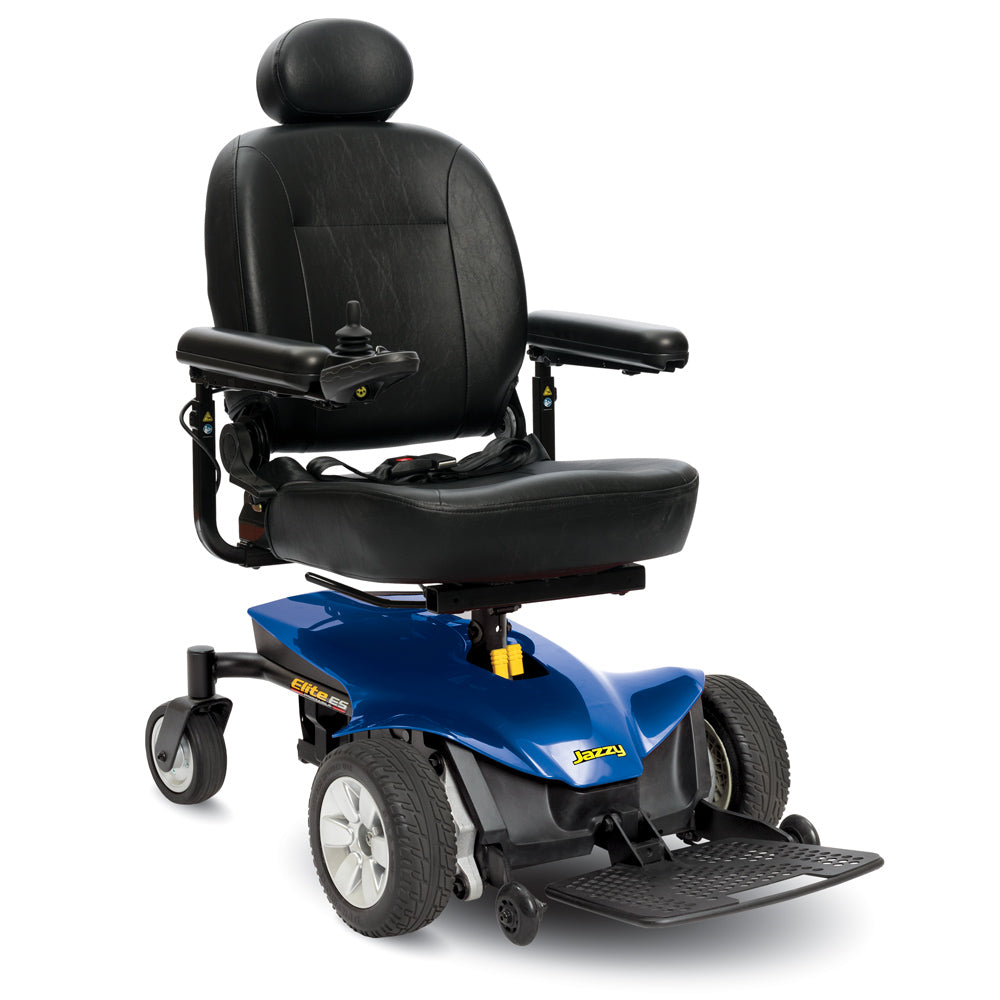

Jazzy Elite ES Portable

$5,099.00

The Jazzy® ES-Portable offers a combination of great style, comfort, performance and portability and disassembles into 5 convenient pieces for your active lifestyle.

The in-line, front-wheel drive design allows tight turns around corners, with large front wheels for extra absorption over obstacles.

With superb climbing capabilities and front anti-tip wheels, the Jazzy Elite ES Portable transitions over grade changes smoothly and handles various terrains with ease.

Features:

  • Easy disassembly for convenient transport
  • In-line, front-wheel drive technology
  • 40 amp, PG GC 3 controller
  • Simple main frame design for easy serviceability

Specification:

Model
Jazzy Elite ES Portable
Weight Capacity 300 lbs.
Turning Radius1 25.5"
Width1 22.75"
Length1,2 34.75"
Maximum Speed3 Up to 4 mph
Ground Clearance1 1.5"
Front Wheels 3" solid anti-tips
Drive Wheels 9" solid
Rear Wheels 6" solid casters
Drivetrain Two-motor, in-line, front-wheel drive
Braking System Regenerative and electro-mechanical
Suspension Type Limited
High-Back Seat (max. size) 20"W x 20"D
High-Back Seat-to-Floor Range 21.5" - 23.5"
Standard Electronics 40A, PG GC3
Battery Size (2 required) 12 volt, U-1
Standard Battery Charger 3.5A, off-board
Per-Charge Range3,6 Up to 11 miles
Battery Weight5 25 lbs. each
Weight of Heaviest Piece4 48 lbs.
Standard Seat Weight 43 lbs. (comfort, high-back)
Standard Seat Size 18"x18"-20"
Medicare Code Coverage Group 2: Standard, Portable (K0820/K0821)
Warranty 5-year limited warranty on frame;
13-month limited warranty on electronics;
13-month limited warranty on drive motors
