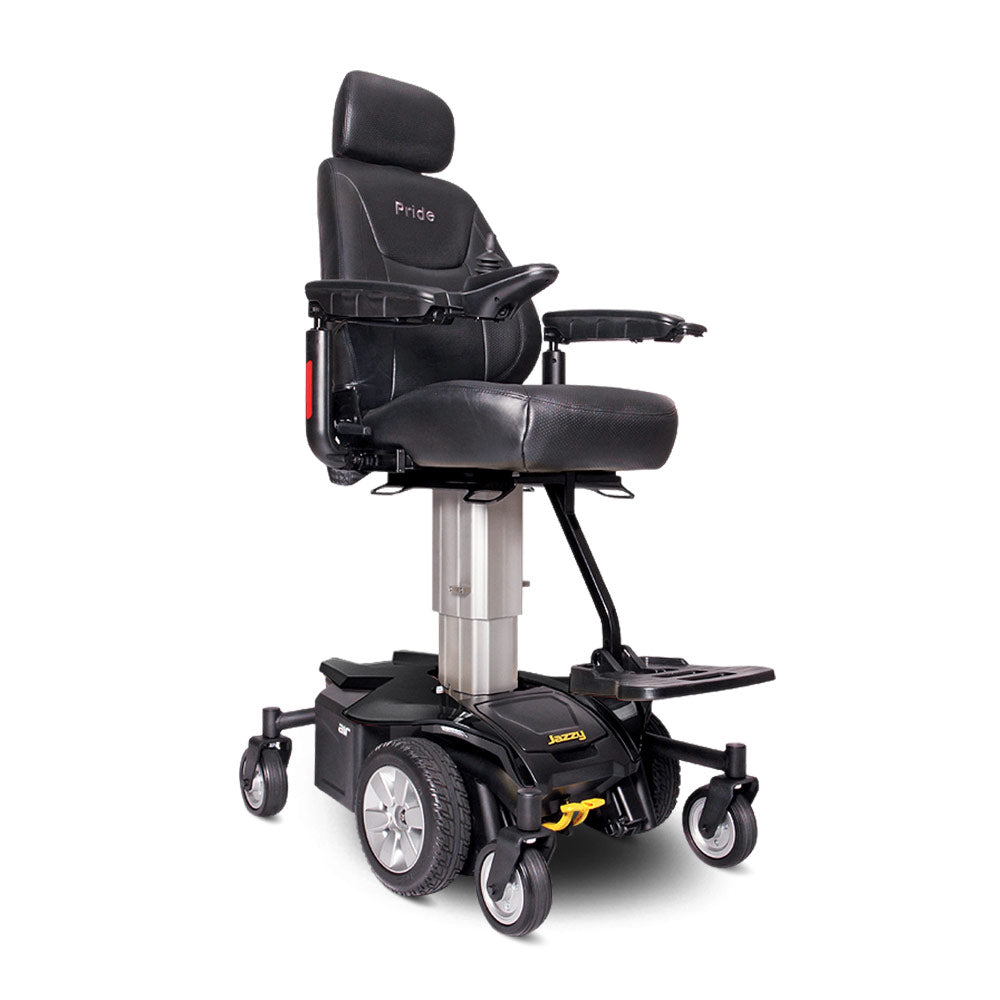

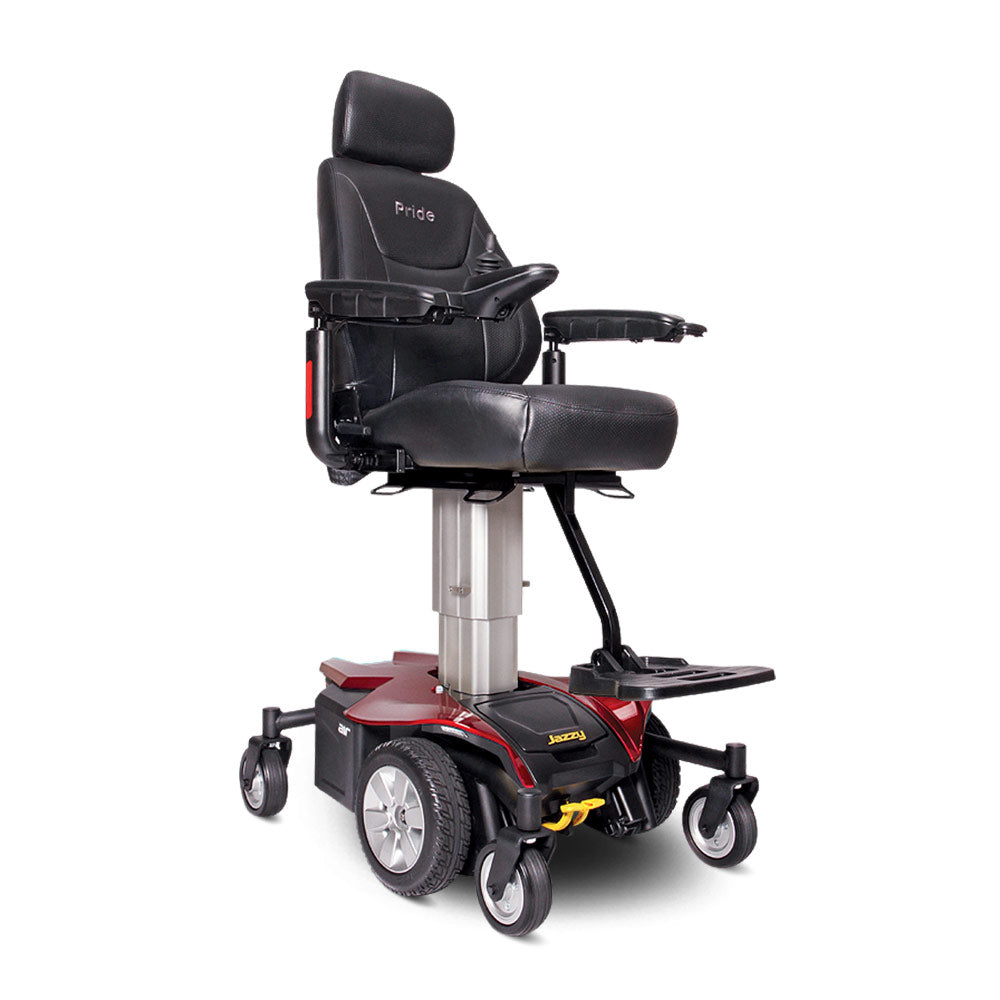

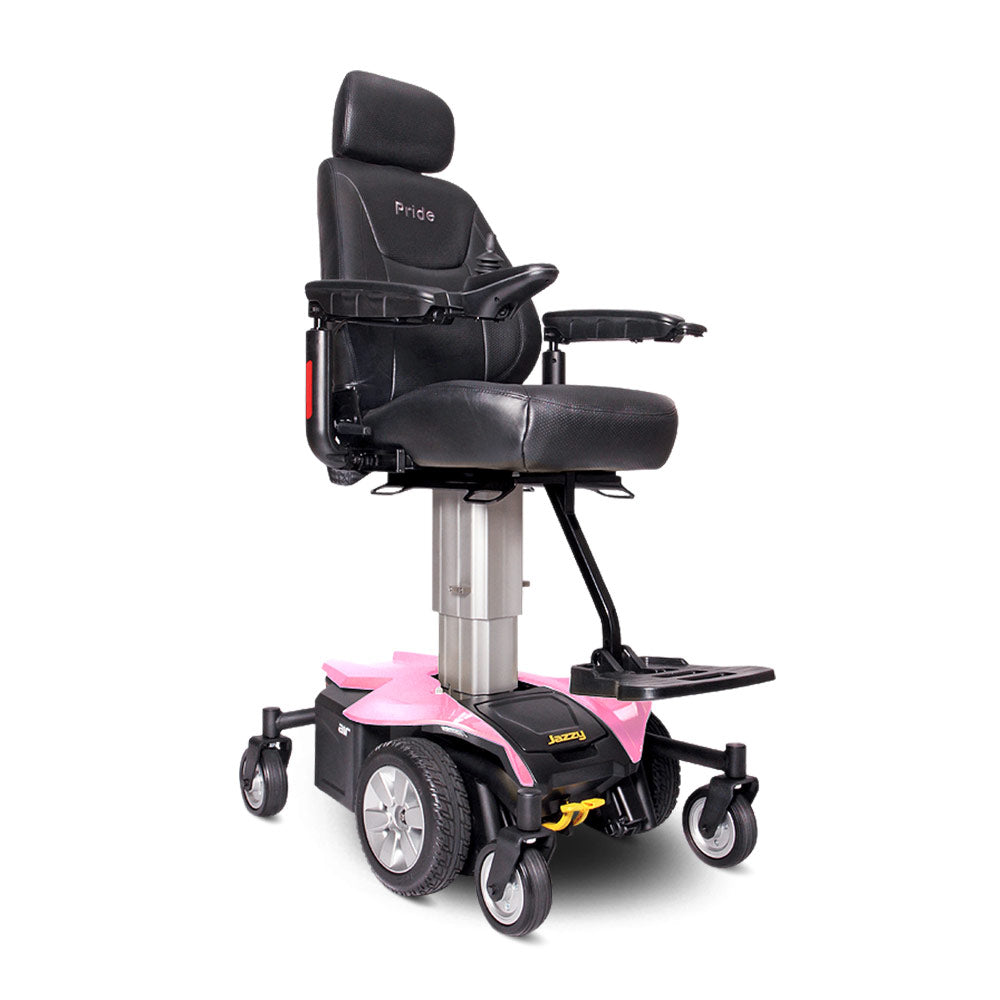

Jazzy Air

Sale price Price $5,799.00 Regular price Unit price per

The future of mobility is here! The Jazzy Air® elevates 10” in just 16 seconds, and safely drives at speeds up to 3.5 mph while elevated, allowing users to experience face-to-face social engagement. Jazzy Air empowers!

Features:

Elevates or lowers while on the move
Provides quick environmental access to countertops, table tops, cabinetry and shelving
Mid-Wheel 6® Drive Design with Active-Trac® Suspension enhances performance and stability both indoors and out
Bright LED lighting offers visibility in all environments
A per charge range up to 18.4 miles
Seat and integrated footplate design provides maximum comfort in both elevated and non-elevated positions
Choice of 16” x 16” – 18”, 18x18-20 and 20x20-22 depth adjustable, high-back, reclining sport seat
60” lap belt
Angle, height and depth adjustable armrests

Specification:

Model	Jazzy Air
Weight Capacity	300 lbs.
Turning Radius¹	22.5"
Width¹	23.375"
Length¹^,²	38"
Maximum Speed³	Up to 4.0 mph (non-elevated position) Up to 3.5 mph (elevated position)
Ground Clearance¹	2.42"
Front Wheels	6" solid casters
Drive Wheels	10"
Rear Wheels	6" solid caster
Drivetrain	Two motor, mid-wheel-6 drive
Braking System	"Intelligent Braking" (electronic regenerative, disc park brake)
Suspension Type	Active-Trac® (ATX) w/ Mid-Wheel 6® Technology
High-Back Seat (max. size)	20"W x 20"-22"D
High-Back Seat-to-Floor Range	23" - 33"
Standard Electronics	40A, PG VR2
Battery Size (2 required)	12 volt, U-1 Optional 40 Ah
Battery Weight⁵	25 lbs. each
Standard Battery Charger	3.5A, off-board
Per-Charge Range³^,⁶	Up to 15.29 miles (U-1), up to 18.29 miles (40Ah)
Weight of Heaviest Piece⁵	181 lbs. (seat weight included, tools required to remove seat)
Standard Seat Weight	41 lbs.
Standard Seat Size	18" x 18"-20"
Warranty	5-year limited on frame; 13-month limited on electronics; 13-month on drive motors
